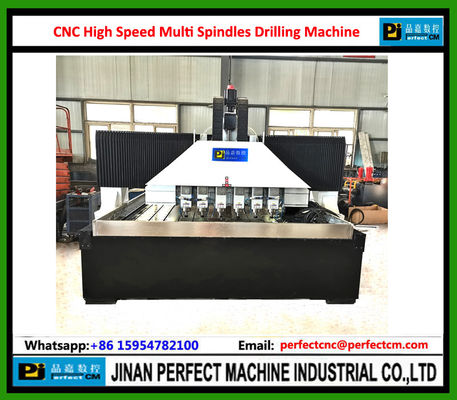

CNC High Speed Multi Spindles Drilling Machine for Step Holes, Taper Holes, Milling Groove Sieve holes, Vibration Sieve

  • CNC High Speed Multi Spindles Drilling Machine for Step Holes, Taper Holes, Milling Groove Sieve holes, Vibration Sieve
مكان المنشأ الصين
اسم العلامة التجارية PERFECT
إصدار الشهادات ISO9001-2008
رقم الموديل PZ2012
الحد الأدنى لكمية 1 مجموعة
الأسعار USD
تفاصيل التغليف معيار
وقت التسليم 30
شروط الدفع ترينيداد وتوباغو، إل سي
القدرة على العرض 100
تفاصيل المنتج
آلة الحفر باستخدام الحاسب الآلي آلة حفر الصفائح اله للثقب ماكينة سي ان سي
اترك رسالة
منتوج وصف

CNC High Speed Multi Spindles Drilling Machine for Thin Plate (Model PZ Series)



Applicable Industry:

Special CNC machine for Drilling steel plates, flange and round plate in the field of steel structure industry. It is also used to drill steel plates of other industries.



Specifications:

Model PZ2012 PZ2016 PZ3016 PZ2020
Max Size Of Work Piece WXL(Mm) 2000X1200 2000X1600 3000x1600 2000x2000
Max. Drilling Diameter (Mm) Φ8 Φ8 Φ8 Φ8
Max.Drilling thickness of plate (mm) up to 8mm up to 8mm up to 8mm up to 8mm
Drill Head Quantity 4/6/8 4/6/8 4/6/8 4/6/8
Power Of Main Motor (KW) 5.5 5.5 5.5 5.5
Spindle Speed up to 10000rpm up to 10000rpm up to 10000rpm up to 10000rpm
Drive Mode Of Gantry Longitudinal (X Axis) Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs. Guided By Linear Rolling Guide; Driven By AC Servo Motor And Ball Screw Pairs.

CNC Axis Quantity 3 3 3 4
Electric Control Type PLC PLC PLC PLC

Workpiece claming way Without Hydraulic Clamps Without Hydraulic Clamps Without Hydraulic Clamps Without Hydraulic Clamps







Should Your Excellency need more information about us, please send us your inquiry.


We warmly welcome customers to visit our factory at any time. No wait, please order now!
