CNC High Speed Drilling Machine for Big Beams (Model BD2010/3) for Heavy Steel Structure

  • CNC High Speed Drilling Machine for Big Beams (Model BD2010/3) for Heavy Steel Structure
مكان المنشأ الصين
اسم العلامة التجارية PERFECT
إصدار الشهادات ISO9001-2008
رقم الموديل دينار بحريني2010/3
الحد الأدنى لكمية 1
الأسعار USD
تفاصيل التغليف معيار
وقت التسليم 10
القدرة على العرض 1000
تفاصيل المنتج
الحد الأدنى لكمية أويدر 1 شروط الدفع تي تي
إمدادات الطاقة 10000
اترك رسالة
منتوج وصف

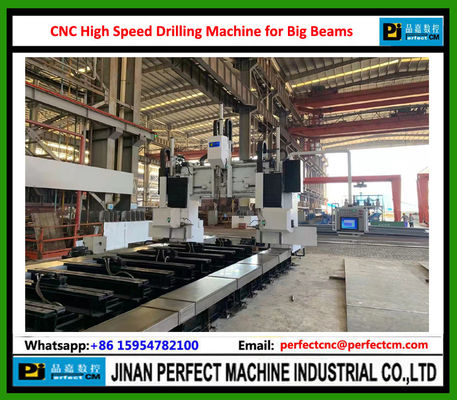

CNC High Speed Drilling Machine for Big Beams (Model BD2010/3)



Applicable Industry:


Used for the drilling processing of H-shape steel, box beam, channel steel, big angle and steel plate of steel structure, bridge, three dimensional garage and petrol platform.

Product Feature:



This machine is mainly made up of bed table, movable gantry, longitudinal slide board, three directions CNC sliding drilling spindle, automatic chip removal and the cooling system, electrical system and other components.


Product Basic Parameter:

Model

BD2010/3

Movable Gantry Type Drilling

Workpiece Size

Max. Section Size (W×H) (Mm)

2000×1000

Min. Section Size (W×H) (Mm)

1000x400

Max. Length (m)

16

Work Table

The Height To The Ground

800mm



Drilling Unit

Type

CNC Slipway Servo Control Type

Quantity

3

Max. Drilling Dia. (Mm)

Φ50

Rotation Speed (r/Min)

120~560 (Frequency Conversion)

Feeding Speed (Mm/Min)

0~4000
