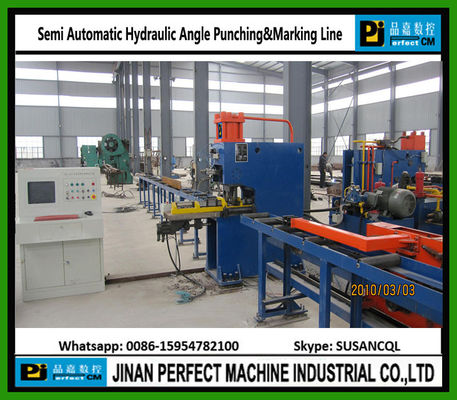

Semi Automatic Hydraulic/Mechanical Angle Punching&Marking Line (Model YC160)

  • Semi Automatic Hydraulic/Mechanical Angle Punching&Marking Line (Model YC160)
مكان المنشأ الصين
اسم العلامة التجارية PERFECT
إصدار الشهادات ISO9001-2008
رقم الموديل YC160
الحد الأدنى لكمية 1
الأسعار USD
تفاصيل التغليف معيار
وقت التسليم 10
القدرة على العرض 1000
تفاصيل المنتج
الحد الأدنى لكمية أويدر 1 شروط الدفع تي تي
إمدادات الطاقة 10000
اترك رسالة
منتوج وصف

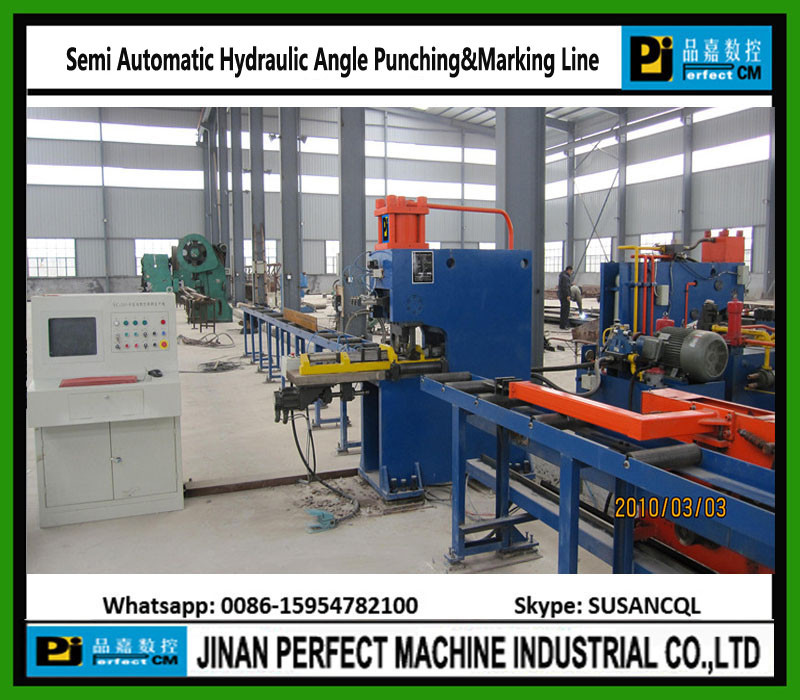

Semi Automatic Hydraulic/Mechanical Angle Punching&Marking Line

(Model YC160)



Applicable Industry:

The machine is the semi automatic special equipment used for angle steel marking & punching mainly in the field of angle steel tower industry.



Composition:

This machine is mainly composed of infeeding conveyor, NC infeed carriage, punching unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



Specifications:

Model

YC160

Functions

Punching & marking

Angle Size (Mm)

40х40х3～160х160х14

Max. Punching (Dia. х Thick.) (mm)

Φ26х14

Punching Force (KN)

1000

Marking Force (KN)

1000

Max. Length Of Finished (m)

8

3 Stations

2 stations for punching, & 1 station for marking

Marking Letters

12

Dimension Of Letter (mm)

14×10×20

CNC Axes

2

Feeding Speed Of Angle (m/min)

60

Processing Precision

Accordance with GB2694

Punching Back Mark

 Side length≥40-63

Back mark≥20

≥70-100

≥32

≥110-125

≥42

≥140-160

≥50

Program Function

Real time fault display

Programming Mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Program Function

Error display
