Automatic CNC Angle Drilling and Marking Line
تفاصيل المنتج
| الحد الأدنى لكمية أويدر | 1 | شروط الدفع | تي تي |
|---|---|---|---|
| إمدادات الطاقة | 10000 | ||
| إبراز | cnc angle line,Angle Drilling Machine,angle drill line |
||
منتوج وصف

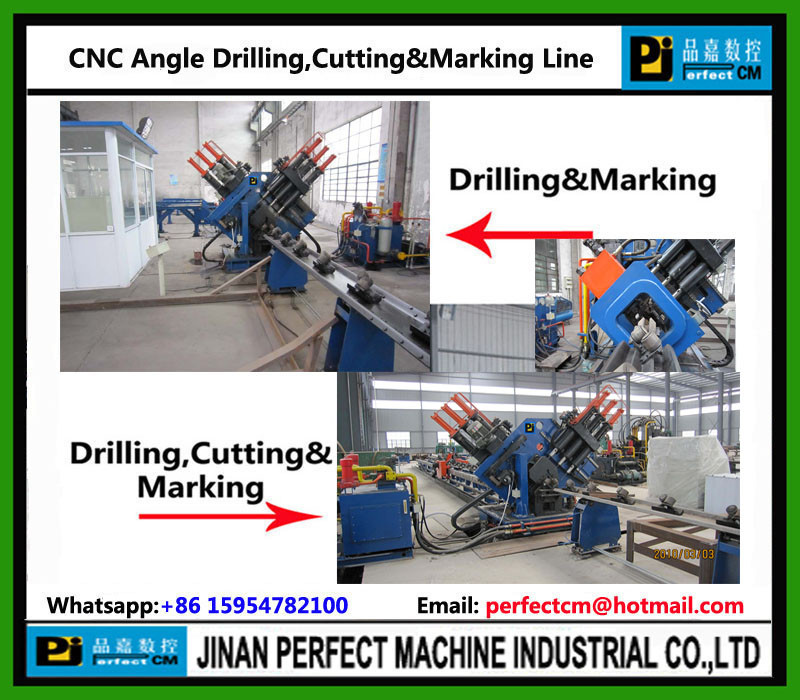

CNC Angle Drilling and Marking Line
APPLICABLE INDUSTRY:
The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
PRODUCT COMPOSITION:
This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
SPECIFICATIONS:
|
Model |
BL2532 |
|
Angle Size(mm) |
140x140x10~250x250x32 |
|
Marking Force(Kn) |
1030 |
|
Max. Length Of Blank(m) |
14 |
|
Double Blade Cutting Force(KN) |
1400, up to 200x200x20mm (optional) |
|
Single Blade Cutting Force (KN) |
4500, up to 200x200x20mm (optional) |
|
Circular Saw Cutting Speed(Mt/Min) |
80-180, up to 250x250x32mm (optional) |
|
Max. Length Of Finished(m) |
14 |
|
No. Of Drill An Each Side(Piece) |
3 |
|
No. Of Character Group(Piece) |
1 |
|
No. Of Character In Each Character Size(Piece) |
15 |
|
Character Side(mm) |
14×10×19 |
|
Range Of Back Mark (mm) |
50-220 (Stepless) |
|
CNC Axes(Piece) |
3 |
|
Spindle Rotation Speed(r/Min) |
180－560,Transducer Stepless Adjustment |
|
Feeding Speed Of Angle(m/Min) |
40 |
|
Diameter Of Drilling(mm) |
Ф13.5~Ф40 |
|
Stroke Of Spindle(mm) |
180 |
|
Processing Precision |
Accordance With GB2694-81 |
|
Programming Mode |
Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface |
|
Overall Dimensions (m) |
32×8.9×3.2 |
|
Gross Weight Of Machine(Kg) |
Approx.17000 |
|
Total Power(Kw) |
35 |
