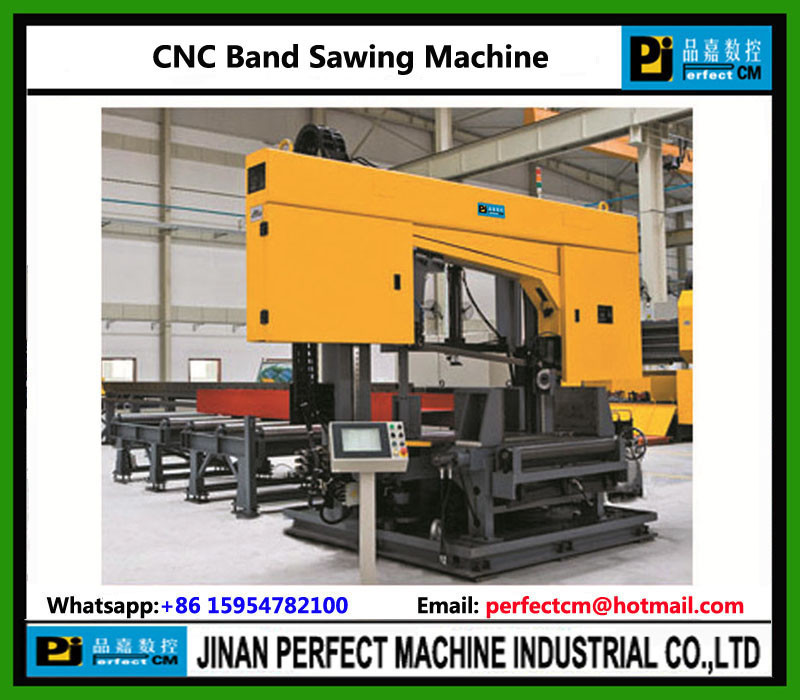

CNC Band Sawing Machine (Model DJ1000/DJ1250)
تفاصيل المنتج
| الحد الأدنى لكمية أويدر | 1 | شروط الدفع | تي تي |
|---|---|---|---|
| إمدادات الطاقة | 10000 |
منتوج وصف
CNC Rotation Angle Band Sawing Machine
Model DJ1000/DJ1250
APPLICABLE INDUSTRY:
The machine is mainly used to cut H-beams,Channels,Pipes and other profiles etc.
PRODUCT FEATURE:
1. The machine is mainly composed of sawing fram, worktable, vertical feeding device, vertical pressing device, rotation worktable, carriage for feeding workpiece, hydraulic system, cooling system and electric system etc.
2. The feeding speed can be adjusted automatically according to different section and also realize reciprocating saw.
3. High efficiency and high precision rotation angle positioning.
4. The machine is equipped with clamp carriage which can automatically identify the infeed length of H-beam, which can get automatically control of all the process.
5. Use touch screen to input the dimension of the workpiece, the processing data can be shown and monitored real-time.
6. Powerful sawing capacity is specially designed for processing different kinds of profiled bars in steel structure industry.
Specifications:
Model | DJ1000 | DJ1250 |
Dimensions For H-Beams | Max. 1000x500 | Max. 1250x600 |
200x75 | ||
Saw Blade Size (mm) | T:1.6;W:54;L:8500 | T:1.6;W:67;L:9300 |
Saw Blade Lineal Speed (m/min) | 20~100 | |
Table Height (mm) | 800 | |
Feeding Speed | Programmable control | |
Rotation Angle | 0~45 degree | |
Host Motor Power (Kw) | 11 | 15 |
Hydraulic Motor Power (Kw) | 5.5 | |
Main Clamping Hydraulic Motor Power (Kw) | 100 | |
Front Clamping Hydraulic Motor Power (Kw) | 100 | |
Overall Dimensions Of Machine (mm) | 4050x2300x2700 | 4400x2300x2800 |
Total Weight Of Machine (kgs) | 9000 | 11000 |
Should Your Excellency need more information about us, please send us your inquiry.
We warmly welcome customers to visit our factory at any time. No wait, please order now!
Skype: susancql
Mobile: 0086-15954782100 (What'sapp)
GTalk: jnfastcnc@gmail.com
E-mail: chengsusan2004@hotmail.com;
perfectcm@hotmail.com;
Website: www.perfectcm.com
Thanks and Best Regards,
Ms. Susan
Marketing director
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
