Hydraulic Ironworker

  • Hydraulic Ironworker
مكان المنشأ الصين
اسم العلامة التجارية PERFECT
إصدار الشهادات ISO9001-2008
رقم الموديل سلسلة Q35Y
الحد الأدنى لكمية 1
الأسعار USD
تفاصيل التغليف معيار
وقت التسليم 30
القدرة على العرض 100
تفاصيل المنتج
الحد الأدنى لكمية أويدر 1 شروط الدفع TT LC
إمدادات الطاقة 100000
اترك رسالة
منتوج وصف

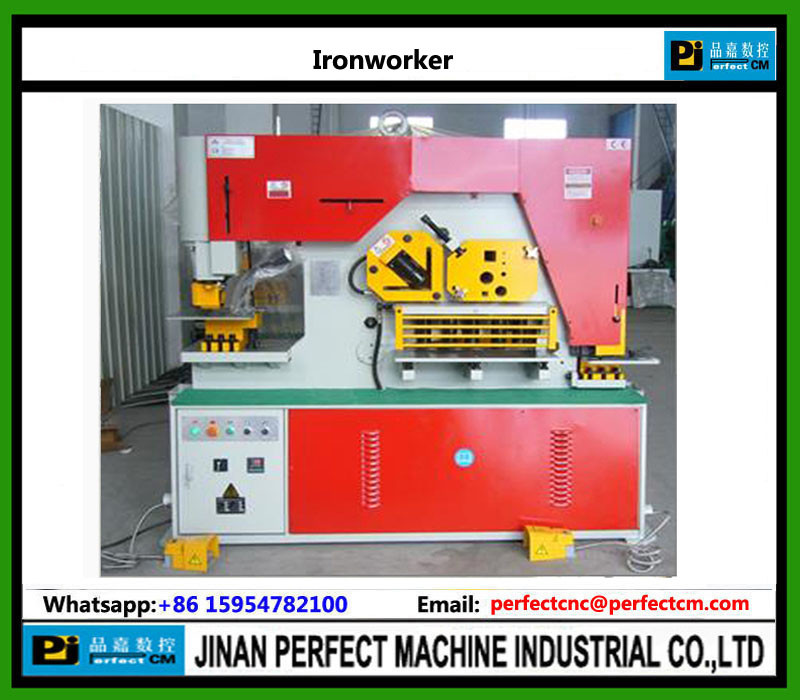

Hydraulic Ironworker

Model Q35Y Series



E-Series Hydraulic Ironworker:

We adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.



Technical Data:

Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Q35Y-40

Q35Y-50

Punching Pressure(T)

60

90

120

160

200

250

Max Shearing Thickness

(mm)

16

20

25

30

35

40

Plate Strength(N/mm2)

≤450

≤450

≤450

≤450

≤450

≤450

Shearing Angle

8°

8°

8°

8°

8°

8°

Flat Bar(H*W)(mm)

8×400

16*250

20×330

10×480

25×330

16×660

30×355

20×600

35×380

25×700

40×400

30×750

Ram Stroke(mm)

80

80

80

80

800

100

Number of Stroke

(times/min)

8

8

8

8

8

8

Throat Depth(mm)

300

355

400

600

560

560

Punching Thickness

(mm)

16

20

25

26

30

35

Max Punching Diameter(mm)

25

30

35

38

40

45

Main Motor Power (kw)

4/5.5

5.5/7.5

7.5/11

11/15

15/18.5

18.5/22

Overall Dimensions

L×W×H(mm)

160*800*1780

1950×900(1120)×1930

2350×980(1240) ×2100

2680×1060(1360)

×2380

2800×1160(1520)

×2400

3000×1440(1760)

×2450

Weight(kg)

1800

2600/2800

4800/5000

6600/7200

7500/8000

10800/11200



Should Your Excellency need more information about us, please send us your inquiry.



We warmly welcome customers to visit our factory at any time. No wait, please order now!
